Características

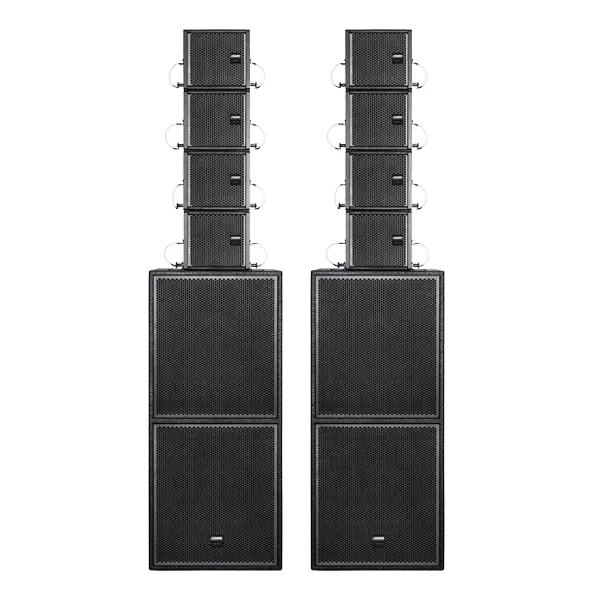

● Compact coaxial design for precise point-source sound reproduction.
● Built-in 2kHz crossover ensures smooth frequency transition between HF and MF drivers.
● High acoustic efficiency with 140°×30° dispersion for optimal coverage.
● Featuring 1×1.5" HF driver, 1×6.5" MF driver, and 2×15" subwoofers, the whole system delivers clear, balanced sound with powerful low-frequency extension.
● The whole system delivers a maximum sound pressure level of 132dB with a sensitivity of 98dB, ensuring powerful and dynamic sound performance.

Entre em contato agora Deixe mensagem Baixar

Introdução
Especificação

翻译中...

Model	DSP1580
Whole System
MAX. SPL.	132dB
Sensitivity	98dB
Full-Range Speaker
Frequency Response	75Hz-20KHz (±3dB)
Sensitivity	95dB/W (lm)
MAX. SPL.	120dB MAX.
Nominal Impedance	8Ω
Nominal Power	200W
Peak Power	800W Peak
Dispersion (H×V)	140°×30°
Crossover Point	Built-in crossover 2KHz
System Type	Passive 2-way coaxial line array
HF drivers	1×1.5" HF driver (38mm voice coil)
MF drivers	1×6.5" MF driver (38mm voice coil)
Paint	Scratch-resistant black speckled paint
Dimensions (H×W×D)	230×270×230 mm
Net Weight	5.5kg
Dual 15-Inch Subwoofer
Frequency Response	30Hz-200Hz (±3dB)
Sensitivity	95dB/W (lm)
MAX. SPL.	125dB MAX.
Nominal Impedance	8Ω
Nominal Power	1200W
Peak Power	4800W
Amplifier Power	1200W+800W+800W (3 channels)
LF Drivers	2×15" LF drivers (75mm voice coil)
Dimensions (H×W×D)	1000×445×455 mm
Net Weight	44kg

PREV: LA0316 Active Column Array Speaker System with 12 Inch Subwoofer - 翻译中...

PRÓXIMO: DSP1280F Portable Waterproof Active Line Array Column PA Speaker - 翻译中...

Relacionar produtos

PL206S Passive Line Array Subwoofer - 翻译中...March 27, 2026The PL206S is a high-output subwoofer developed to enhance line array systems, delivering powerful and well-defined low frequencies across a range of 50 Hz to 300 Hz.It features a 15-inch long-excursi...view
LA1420 duplo 10 Array alto-falante de gama completaDecember 18, 2017LA1420 é um alto-falante duplo de 10 matriz completa. Com matriz passiva de alta frequência de alta qualidade de alta qualidade, os agudos são montados na buzina do HSI para produzir onda não distorcida. O orador tem excel...view

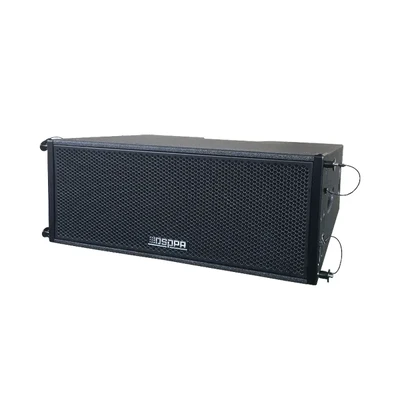

PL208 Passive Line Array Full-Range Speaker - 翻译中...March 27, 2026The PL208 is a compact line array module designed to deliver high output with clear and well-balanced sound reproduction across a frequency range of 70 Hz to 18 kHz.It features dual 8-inch low-frequen...view

«
